工程施工圍擋是文明施工的重要組成部分，彩鋼板圍擋除了為施工現場的管理及財產提供保障外，同時還能美化環境，讓施工順利進行。濟南圍擋廠家為您講解的彩鋼板圍擋的施工方案如下：

The construction enclosure is an important part of safe and civilized construction. The color steel plate enclosure can not only guarantee the management and property safety of the construction site, but also beautify the environment and make the construction go smoothly. The construction scheme of color steel plate enclosure explained by Jinan enclosure manufacturer is as follows:

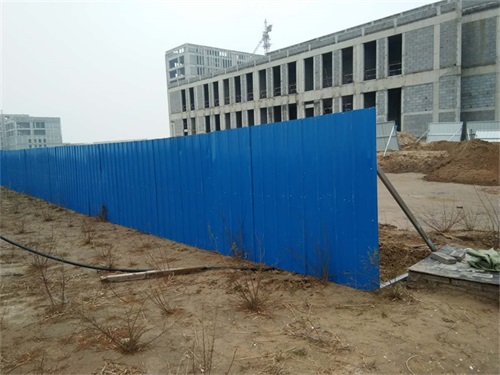

一、彩鋼板圍擋采用藍色輕質夾心彩鋼板，厚度為50mm，高度2米，彩鋼圍擋頂部及底部分別設置10cm高的鋼槽壓頂和鋼槽托底，每隔2.9米設一個錨固于地面的鋼立柱，立柱下座為50cm×50cm×50cm的C25砼基礎，鋼柱底板四角采用膨脹螺栓與混凝土基礎連接固定，既可以減少占地，又可保證=彩鋼圍擋穩固、整齊、美觀。

1、 The color steel plate enclosure is made of blue light sandwich color steel plate, with a thickness of 50mm and a height of 2m. The top and bottom of the color steel enclosure are respectively provided with a 10cm high steel trough coping and a steel trough supporting bottom. A steel column anchored to the ground is set every 2.9m, and the lower base of the column is 50cm × 50cm × For the 50cm C25 concrete foundation, the four corners of the steel column base plate are connected and fixed with the concrete foundation by expansion bolts, which can not only reduce the land occupation, but also ensure that the color steel enclosure is stable, neat and beautiful.

二、施工圍擋使用的材料應保證圍。市政工程項目工地，施工單位不得在工地圍欄外堆放建筑材料、垃圾和工程渣土。這樣不僅會影響城市市容，還有可能會坍塌。在經批準臨時占用的區域，應嚴格按批準的占地范圍和使用性質存放、堆卸建筑材料或機具設備，臨時區域四周應設置高于1m的圍欄。

2、 The materials used for construction enclosure shall ensure the enclosure safety and environmental protection. On the construction site of municipal engineering project, the construction unit shall not pile construction materials, garbage and engineering waste outside the fence of the construction site. This will not only affect the city appearance, but also may collapse. In the area approved for temporary occupation, construction materials or machines, tools and equipment shall be stored, stacked and unloaded in strict accordance with the approved area and nature of use. A fence higher than 1m shall be set around the temporary area.

三、彩鋼板圍擋墻上使用廣告布作為裝飾材料，廣告布上反映企業文化或生產的標語。彩鋼板圍擋標語主要包括：工程名稱、各參建單位名稱、投訴電話公告、文明施工用語、企業文化用語等，廣告布為藍底白字。

3、 The color steel plate enclosure wall uses advertising cloth as decorative material, and the advertising cloth reflects the corporate culture or safety production slogans. The color steel plate enclosure slogans mainly include: project name, name of each participating unit, complaint telephone announcement, safe and civilized construction language, corporate culture language, etc. The advertising cloth is white on a blue background.

相鄰圍擋可以通過圍擋板兩側的槽鋼嵌入立柱槽位，用自攻螺絲固定。泡沫夾芯板外形美觀，色澤艷麗，整體效果好，它集承重，保溫，防水于一體，且無需二次裝修，是一種用途廣泛，特別是在對于建筑工地的臨時設施如辦公室，倉庫，圍墻等，更體現了現代施工工地的文明施工，尤其在快速安裝投入使用方面，在可裝可拆、材料的周轉復用指數方面，都有明顯優勢。

The adjacent fence can be embedded into the column slot through the channel steel on both sides of the fence and fixed with self tapping screws. The foam sandwich panel is beautiful in appearance, bright in color and good in overall effect. It integrates load-bearing, heat preservation and waterproof, and does not need secondary decoration. It is widely used, especially for temporary facilities on the construction site, such as offices, warehouses, fences, etc., which reflects the civilized construction of modern construction sites. Especially in the aspect of rapid installation and use, it has obvious advantages in the aspects of detachable and reusable index of materials.

圍擋的作用的發揮以及良好的外部形象的體現關鍵在于日常的維護。安排一組人員進行維護。更多相關圍擋的內容就來我們網站http://www.szjqyy.net咨詢了解吧！

The key to the safety function of enclosure and the embodiment of good external image lies in daily maintenance. Arrange a group of personnel for maintenance. More information about the enclosure can be found on our website http://www.szjqyy.net Ask and understand!
